Small Corrugated Roof Sheet Machine
Technical Specifications
| Product Name |
Small Corrugated High-speed Metal Roofing Machine |
| Overall Dimensions |
7000mm × 1300mm × 1400mm |
| Package |
Nude |
| Equipment Chassis |
350#H Steel |
| Middle Plate |
16mm Thick |
| Rows |
13 Rows |
| Shaft |
70mm Diameter Solid Shaft, Cylindrical Grinding, Key Insert |
| Wheel Material |
45# Steel |
| Spacer |
Thickened Spacer, Surface Sprayed |
| Tie Rod |
35mm Diameter Galvanized Tie Rod |
| Board Output Speed |
30-35 m/min |
| Weight |
4 Tons |
Machine Overview
This fully automatic small corrugated roll forming machine is engineered for high-speed, high-precision production of small-wave roofing and wall cladding sheets. It features our patented linear guide cutting system, which ensures stable running, minimal vibration, and ultra-clean, burr-free cutting with outstanding length accuracy.
Key Features
- Heavy-duty welded frame construction
- Hardened high-precision forming rolls
- Servo feeding system
- Intelligent PLC control
- Patented linear guide shear for improved cutting stability
- Extended blade life and high-speed continuous forming capability
Applications
Widely applied in workshops, warehouses, prefabricated buildings, and lightweight construction projects for efficient production of roofing and wall cladding sheets.

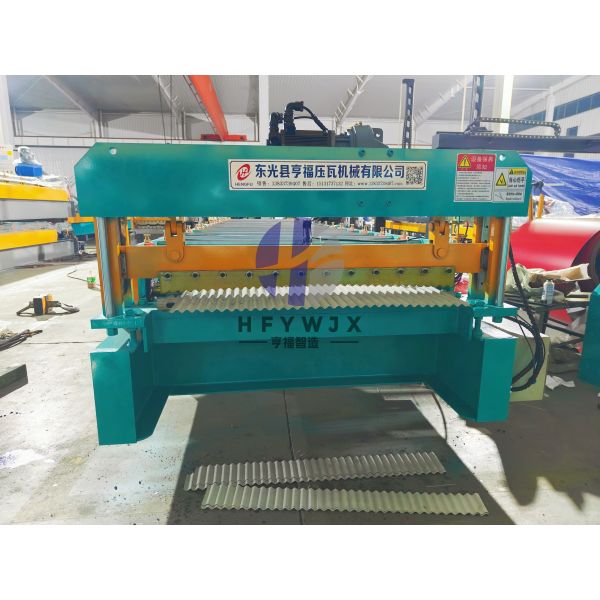

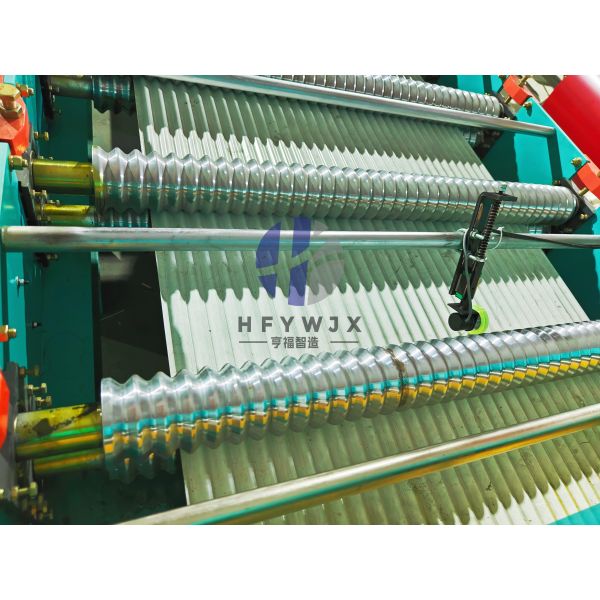

Product Images
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
